HDR output

HDR output is a feature that enables presentation of High Dynamic Range (HDR) visuals on HDR-capable screens. HDR output is not to be confused with the internal HDR rendering that is used by Godot for both Standard Dynamic Range (SDR) output and HDR output modes.

Enabling HDR output in your project

You can enable HDR output in any new or existing project using these steps:

Ensure no Environment resources use SDR-only features:

Tonemap Mode: Filmic or ACES
Glow Blend Mode: Soft Light
Adjustments: Color Correction

Configure the Rendering Device Driver project setting to the following:

macOS: metal
iOS: metal
Windows: d3d12

Configure the Display Server Driver.linuxbsd project setting to wayland and enable the Prefer Wayland editor setting.
Turn on the HDR 2D project setting and enable use_hdr_2d for all SubViewports and Windows that should support HDR output.
Turn on the Request HDR Output project setting and enable hdr_output_requested for all other Windows that should support HDR output.

Note

Some of these settings may already be configured correctly for HDR output in your project. For example, the Windows Rendering Device Driver is set to d3d12 in projects created in Godot 4.6 onwards, but will need to be changed if the project was created with an older version of Godot.

HDR output fundamentals

Godot uses the Extended Dynamic Range (EDR) paradigm for HDR output. While SDR output allows color component values between 0.0 and 1.0 to be displayed, HDR output allows values higher than 1.0. The maximum value that can be displayed is provided by Window.get_output_max_linear_value() and this method is valid when using SDR or HDR.

Note

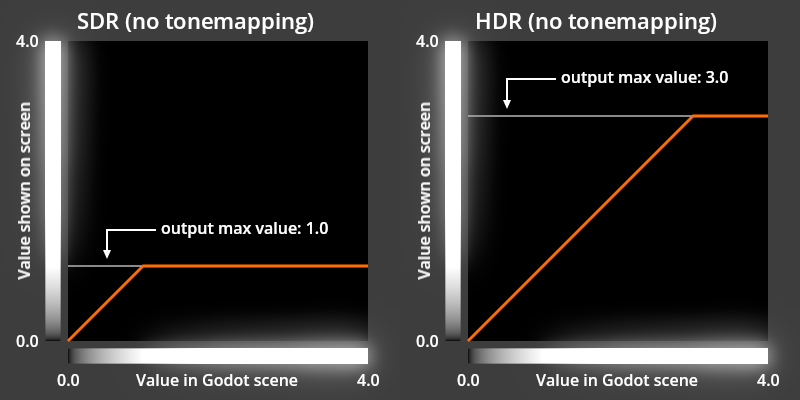

These graphs are presented as SDR images that do not contain any HDR color. To compensate for this limitation, the grayscale bars along each axis have a glow effect applied to represent values that are outside of the SDR range. The "output max value" in this graph represents the maximum linear color component value returned by Window.get_output_max_linear_value().

Designing for HDR output

There are two primary approaches to make the most of HDR output: using the output max linear value and using the WorldEnvironment node.

While both approaches can be used in the same project, the output max linear value should generally not be used in scenes that are affected by a WorldEnvironment. The Viewport.own_world_3d property can be used to separate which Viewports are affected by a WorldEnvironment.

Using output max linear value

In a traditional SDR-only game, the brightest presentation of a color is limited by either the red, green, or blue component of the color reaching a maximum of 1.0. When using a modern HDR screen this limitation no longer applies and color components above 1.0 can be accurately presented. Godot provides the maximum color component value that can be presented by the screen through the output max linear value. This value can be used in both SDR and HDR, which makes it easy to build your game for both output modes without needing to change behavior based on whether or not HDR output is enabled.

The output max linear value may change often as the player adjusts their device brightness, enables or disables HDR output on their device, or moves the game window between screens, so it's important to retrieve this value every frame. The value will always equal 1.0 in SDR mode and may also equal 1.0 when HDR output is enabled and the player has adjusted their screen to its maximum brightness.

It is best to use this output max linear value with "highlights" and special effects that are either brief or involve a small portion of the screen; if the majority of the screen is presented at this maximum brightness for more than a short time, it will cause the game to appear uncomfortably bright, as if the game is ignoring the device brightness setting. You may also find that some effects look best when limited to a maximum linear value that is greater than 1.0, but less than the output max linear value. You can read more about how it is sometimes desirable to limit the maximum HDR value in the HDR and User Interfaces post of the Android Developers Blog.

Transforming a color to be the brightest the screen can present can be done with a script. When working with CanvasItem, it may be convenient to apply the resulting modified color to the modulate or self_modulate property with the base color of the CanvasItem set to white. The following script demonstrates this:

extends CanvasItem

# Set this to your desired color when the CanvasItem's base color is white.
@export var sdr_self_modulate: Color = Color.WHITE

# Set this to -1.0 to disable limiting the maximum color value.
@export_range(0, 20, 0.1, "or_less", "or_greater") var max_linear_value_limit: float = -1.0


func _process(_delta: float) -> void:
        # Adjust the brightness of color to be the brightest possible, regardless
        # of SDR or HDR output, but no brighter than max_linear_value_limit.
        var max_linear_value = get_window().get_output_max_linear_value()
        if max_linear_value_limit >= 0.0:
                max_linear_value = minf(max_linear_value, max_linear_value_limit)
        self_modulate = normalize_color(sdr_self_modulate, max_linear_value)


func normalize_color(srgb_color, max_linear_value = 1.0):
        # Color must be linear-encoded to use math operations.
        var linear_color = srgb_color.srgb_to_linear()
        var max_rgb_value = maxf(linear_color.r, maxf(linear_color.g, linear_color.b))
        var brightness_scale = max_linear_value / max_rgb_value
        linear_color *= brightness_scale
        # Undo changes to the alpha channel, which should not be modified.
        linear_color.a = srgb_color.a
        # Convert back to nonlinear sRGB encoding, which is required for Color in
        # Godot unless stated otherwise.
        return linear_color.linear_to_srgb()

Using a WorldEnvironment node

To produce HDR output using a WorldEnvironment, your scenes will need color values that exceed what an SDR screen can present, so it is important to use a tonemapper like Reinhard or AgX to handle display of bright scene values on both SDR and HDR screens.

Tonemapping and HDR

The primary role of a tonemapper is to reduce the dynamic range of a natural scene with a very high dynamic range of brightness to a smaller dynamic range that can be presented on a screen. Tonemappers in Godot use the output max linear value to determine the output range that the screen is capable of presenting. For example, with the Reinhard tonemapper in Godot, linear scene values in the range of 0.0 to tonemap white are mapped to an output range of 0.0 to output max linear value.

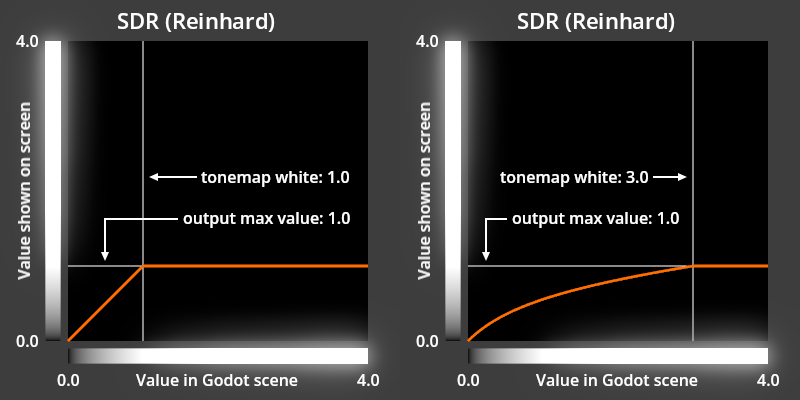

../../_images/rendering_hdr_output_sdr_tonemap.webp

With this approach, you can adjust tonemap white to be sure that any linear scene value below tonemap white will be shown without clipping. This ensures that details are not lost when presenting the image on a screen with a lower dynamic range than the original scene.

../../_images/rendering_hdr_output_tonemap_white.jpg

While this behavior is perfectly stable in SDR, where the output max linear value is fixed at 1.0, this behavior is dynamic with HDR based on the capabilities of the screen:

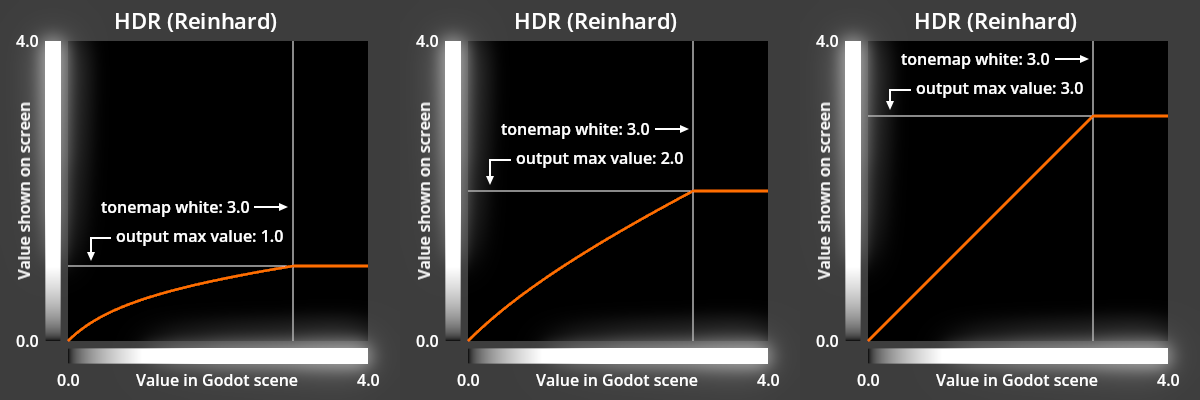

../../_images/rendering_hdr_output_hdr_tonemap.webp

As shown in the graphs above, the Reinhard tonemapper will behave the same as the Linear tonemapper when output max linear value is equal to or higher than tonemap white. This allows for accurate color reproduction on HDR screens that are capable of reproducing the original brighter scene values. When output max linear value has increased to be higher than tonemap white, tonemap white will be adjusted to match this output max linear value.

The AgX tonemapper behaves similar to Reinhard in this way, but its tonemap white is always multiplied by output max linear value. The Linear tonemapper applies no tonemapping at all; its tonemap white equals output max linear value in all scenarios. The Filmic and ACES tonemappers ignore output max linear value entirely and always produce an image in the SDR range.

Mixing output max linear value and the WorldEnvironment node

The output max linear value should generally not be used in scenes that are affected by a WorldEnvironment. This is because a number of effects of Environment expect stable scene values that do not change based on the screen capabilities. For example, the strength of the glow effect is directly influenced by the brightness of the scene. If the scene brightness changes based on output max linear value, then the glow strength will change as well: a larger output max linear value will produce a stronger glow effect, which is generally an undesirable behavior.

An exception to this rule is to change the background mode through a WorldEnvironment with a Linear tonemapper because the Linear tonemap mode disables tonemapping and background rendering is not affected by the brightness of scene values.

Absolute luminance values

When using HDR output, output max linear value is calculated based on the reference white luminance and the maximum luminance of the screen.

Reference white luminance

The reference white luminance, or reference luminance for short, represents the brightest possible SDR white value. When a user changes the brightness setting of the device that is producing the video signal, such as a desktop computer, laptop, or smartphone, they are simply adjusting their reference luminance. On a smartphone this change may happen automatically via the smartphone's automatic screen brightness feature and also happens when the user manually adjusts their screen brightness. On desktop or laptop computers, there are different ways to adjust this reference luminance depending on the operating system.

This value is typically around 100 to 300 nits and is always represented by an output max linear value of exactly 1.0. This value may also be referred to as "paper white" or the "SDR white level".

Maximum luminance

The maximum luminance is a property of an HDR screen. This value may be anywhere from 250 to 2,000 nits or beyond.

Although this value is a property of the screen hardware and is expected to not change, some devices dynamically adapt this value to work within the constraints of the platform. For example, the reported maximum luminance of Windows laptops with built-in HDR screens will change as the user adjusts their laptop screen brightness while the reported reference luminance remains constant.

Output max linear value in practice

When in HDR mode, the output max linear value will increase as the user decreases their reference luminance because more HDR headroom becomes available. Similarly, as the user increases their reference luminance, they will have less HDR headroom available and output max linear value will decrease. In some cases when using HDR mode with the highest reference luminance, output max linear value will equal 1.0, matching SDR behavior, because no HDR headroom is available.

Not all screens are equal

SDR standards were designed to match the capabilities of existing screens that were commonly used around the world. HDR standards have been intentionally written with the opposite approach: they are designed to utilize the capabilities of an ideal screen that is not yet widely available.

In practice, this means that common HDR screens may perform their own internal tonemapping, gamut mapping, or dynamic tonemapping (DTM) to support content that extends to a wider gamut and luminance range than what the physical hardware can achieve. Some screens are not capable of presenting very bright color values that fill more than a small (1% to 10%) portion of the screen and will dim the entire image or part of the image temporarily when this happens. These features may produce colors that are not representative of other screens so it's best to disable them, if possible, when developing your HDR game. You may be able to disable some or all of these features by enabling the HGiG mode on your screen or setting the screen's mode to "clip" and/or "stable". Some HDR screens may present dark or saturated colors differently than others; this difference in appearance is often the result of the screen technologies.
